Leica M in Motion Environments – Hybrid Capture Integration
Overview
Video capability within the Leica M platform has often been considered secondary. However, in controlled professional environments, the system can be integrated into structured motion workflows when supported by appropriate stabilization architecture.
This section outlines the evaluation and field implementation of the Leica M240 in a professional motion assignment where hybrid still and motion capture requirements intersected.
Platform Evaluation: M240 vs Compact Hybrid System
For this project, two platforms were evaluated:
- Leica M240 (1080p @ 24fps, 50 Mbit/s)
- Leica D-Lux 109 (1080p @ 60fps, 4K @ 30fps, 100 Mbit/s in 4K)
On specification alone, the D-Lux appears advantageous:
- Higher frame rate
- Built-in stabilization
- Autofocus
- Compact form
However, motion capture decisions extend beyond frame rate and automation. Sensor rendering, lens character, and manual control architecture influence final visual outcome significantly.
The M240 paired with M-mount optics offered:
- Higher perceived micro-contrast
- Greater optical depth
- Superior color rendering consistency
- Greater manual control certainty

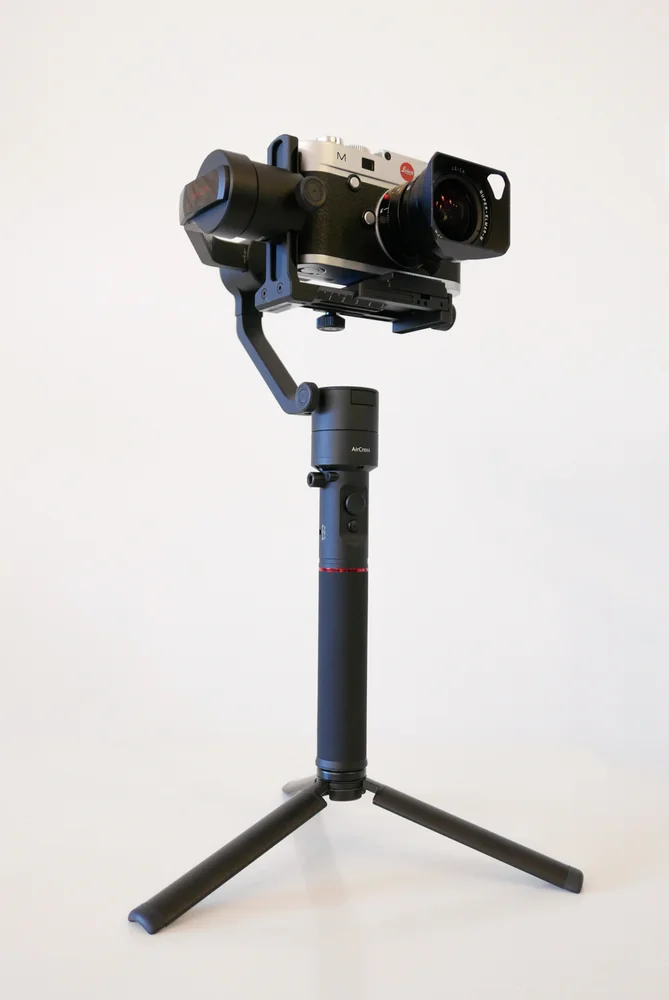

Stabilization Integration: Moza AirCross Platform
The Leica M platform lacks internal stabilization. Integration with a Moza AirCross gimbal resolved this structural limitation without compromising system balance.
Due to the compact body and relatively small lens footprint, stabilization tuning was straightforward. The mechanical weight distribution of the M240 and Super-Elmar 18mm ASPH created a well-balanced motion profile suitable for controlled architectural and industrial movement sequences.
The addition of external stabilization transformed the M system from a static capture platform into a viable motion tool.
-

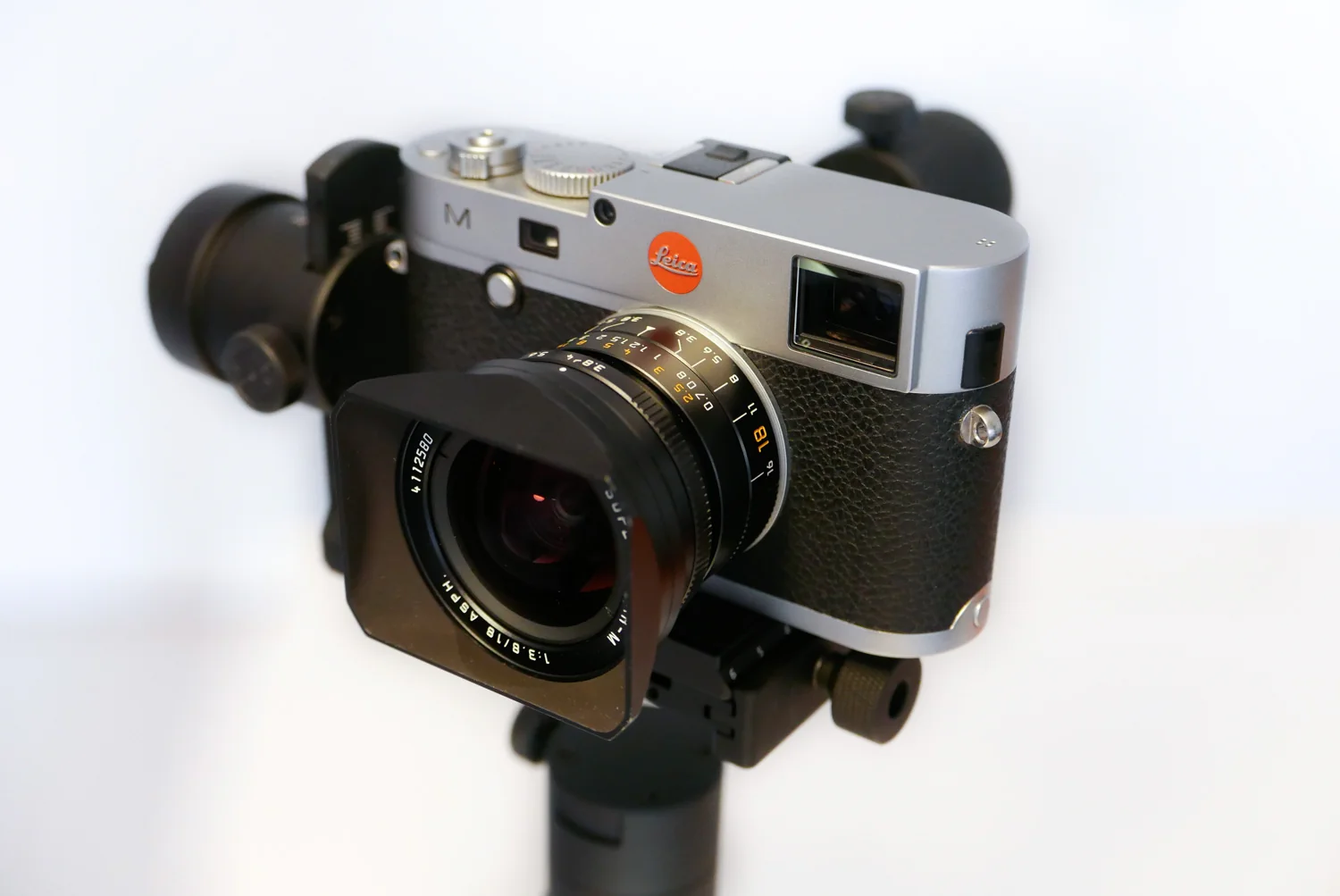

100 degrees wide angle moster
Optical Strategy: Super-Elmar 18mm ASPH
The selected lens for the assignment was the Super-Elmar 18mm ASPH.
Operational rationale:
• 100° field of view
• Controlled geometric rendering
• Exceptional edge-to-edge precision
• Minimal distortion in architectural lines
When cropped to a 21:9 aspect ratio, the lens produced cinematic spatial depth without introducing structural deformation.
Sharpness remained extremely high, but more importantly, the image maintained dimensional clarity. Fine industrial textures, surface details, and structural elements resolved with high fidelity.
The lens was used exclusively throughout the project.
Manual Control Architecture in Motion
Unlike fully automated hybrid systems, the M240 required deliberate configuration prior to capture.
Operational configuration:
- Aperture Priority mode
- Manual focus
- Manual shutter speed (1/60 or 1/24 sec)
- Auto White Balance (field constraint decision)
- ISO controlled within exposure parameters
Manual focus at 18mm allowed effective depth control. By leveraging hyper-focal distance principles, it was possible to maintain broad focus planes while concentrating exclusively on motion execution.
In practice, this reduced cognitive load during active movement. Once exposure and focus planes were established, the operator’s attention shifted entirely to composition and motion choreography.
-

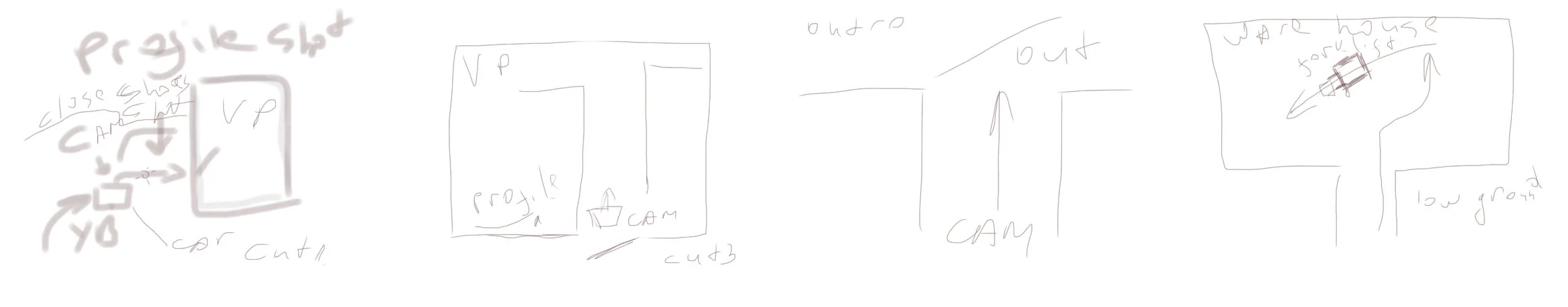

Quick brainstorming about the project
Field Conditions and Execution
Environmental conditions were severe:
• High winds
• Low temperatures
• Limited subject availability
• Short production window
The stabilization platform remained operationally stable despite wind interference. Motion sequences were executed under time pressure, with minimal retakes.
Auto white balance was retained due to rapid environmental shifts. Color consistency remained stable across the majority of sequences, with minor correction required in post-production under extreme mixed-light conditions.
The project was executed within a narrow capture window, requiring disciplined shot planning and adaptive sequencing.
Data Integrity and Bitrate Comparison
Technical output comparison:
Leica M240
• 1080p @ 24fps
• 50 Mbit/s
Leica D-Lux 109
• 1080p @ 60fps ≈ 30 Mbit/s
• 4K @ 30fps ≈ 100 Mbit/s
While 4K bitrate on the D-Lux is technically strong, resolution alone did not define perceived image quality in this assignment.
The M240 files demonstrated:
• Higher tonal depth
• Stronger micro-contrast
• More consistent color rendering
• Greater post-production flexibility
The motion aesthetic aligned more closely with the visual identity established in still photography.
Battery Performance in Extended Motion Use
Battery performance remained consistent with still capture experience.
Over 2–3 hours of continuous video recording (LCD active), combined with still capture sequences, remaining battery capacity was approximately 45%.
For a full-frame mirrorless system, this endurance reduces operational interruption and supports extended field deployment without excessive battery rotation.
Conclusion
The Leica M platform was not designed primarily as a motion camera. However, when integrated with external stabilization and deliberate optical selection, it can function as a disciplined hybrid capture tool.
The system does not compete through automation speed. It performs through structural clarity:
• Manual focus precision
• Optical rendering integrity
• Mechanical reliability
• Predictable exposure behavior
In motion environments where visual identity matters more than automation convenience, the Leica M remains operationally viable.
Equipment and software used on the project
• Leica M
• Leica 18 mm Super Elmer ASPH
• Leica M stereo microphone set
• Moza AirCross gimbal
• LUMU Power Meter
• MacBook Pro i7 2015 with 30” Apple Cinema monitor
• FinalCut Pro X
• Compressor
• Bensound website for free audio track

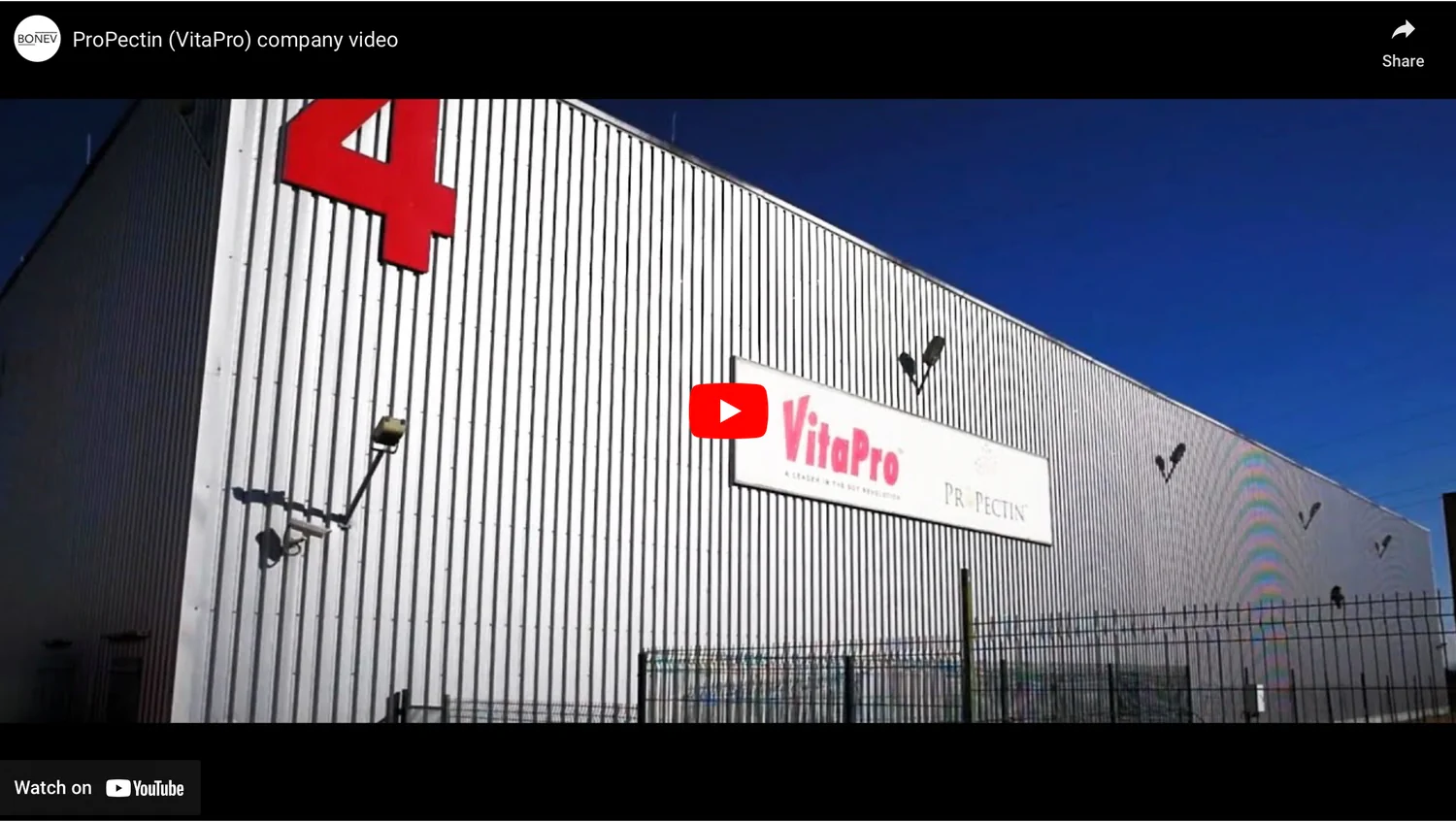

Bellow you could see the final edited project
